• Smart and modern design, minimalist appearance
• Excellent heat dissipation design with ADC12 aluminium heat sink
• System lumens output up to 170lm/W
• Powered by Lumileds LUXEON / TYF / GUANGYOU 5050 LED
• Available driver brands including Mean Well, Inventronics, Philips, Sosen and Moso
• 3 pin, 5 pin, 7 pin NEMA socket with photocell sensor
• Photocell automatically switches on at 6LX and off at 50LX
• Optional 0–10V dimming or DALI control
• IK08 tempered glass with IK10 optical PC lens
• Support built-in 10kV / 20kV surge protection device (SPD)
• Adjustable bracket 0°–90° for horizontal or vertical installation
• 500 hours salt spray test for coating durability
• Cost-effective and efficient lighting solution

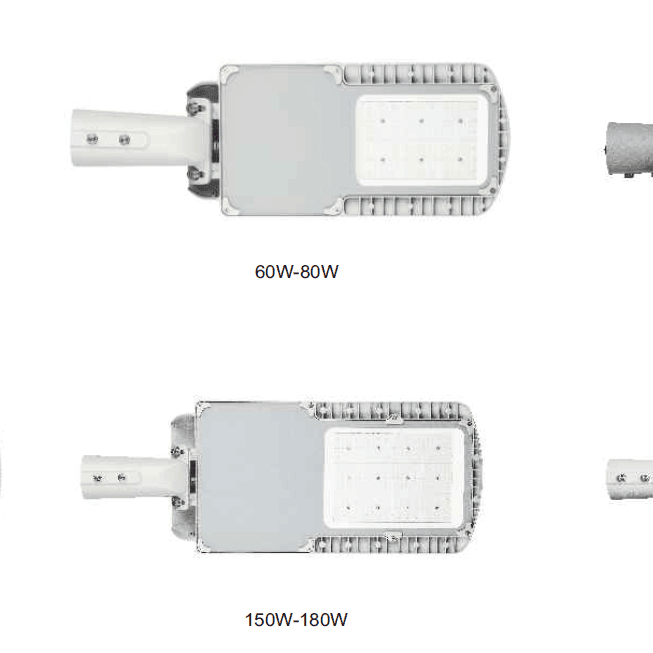

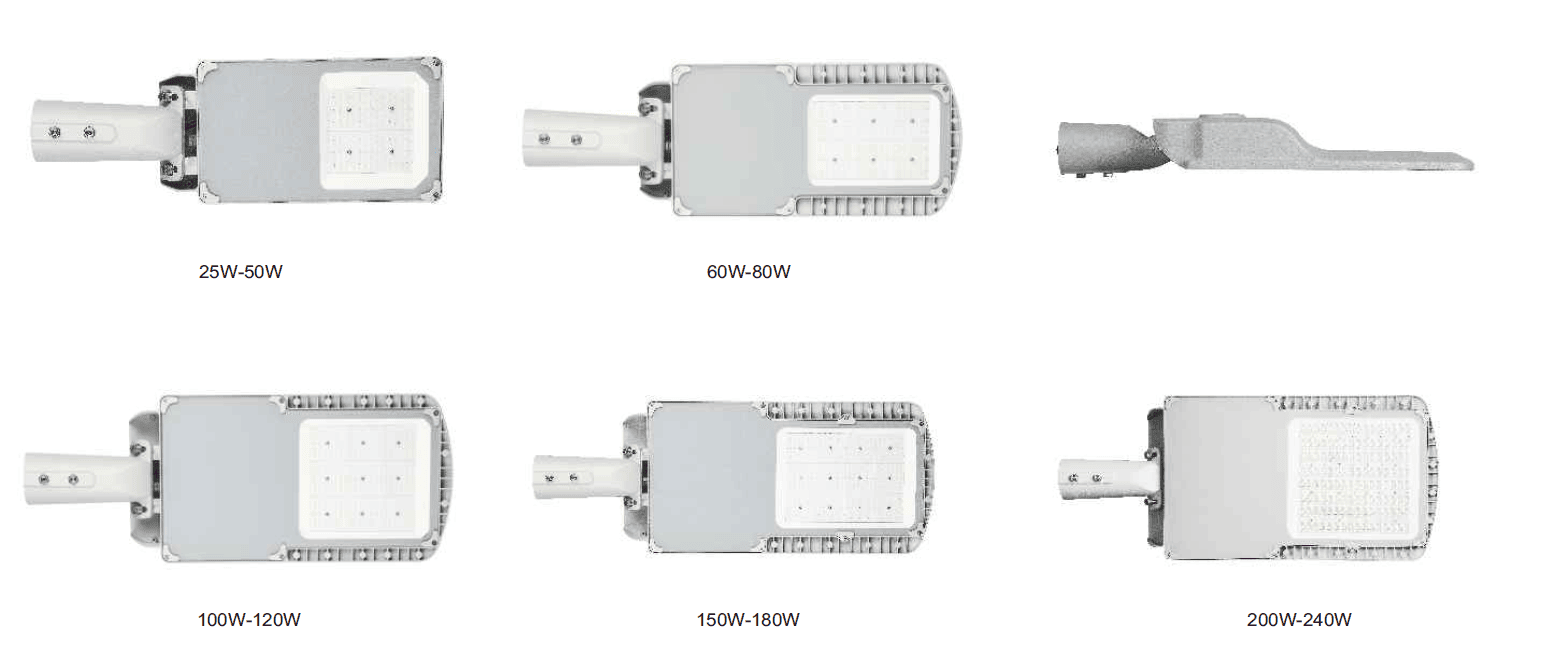

• Power Range – 25W to 240W
• Input Voltage – AC 100–277V
• Luminous Efficacy – up to 170lm/W
• CRI – >70Ra
• Colour Temperature – 2200K–6500K
• Power Factor – >0.95
• Beam Angle – Type II, Type III, Type IV, Type V
• Material – ADC12 aluminium + IK08 tempered glass + IK10 optical PC lens
• IP Rating – IP66
• Surge Protection – 10kV / 20kV SPD
• Operating Temperature – -40°C to +50°C
• Lifespan – ≥100,000 hours

• Modular optical PC lens design improves lighting distribution efficiency
• Optional light distribution curves available
• High light transmittance lens with anti-ultraviolet protection
• Quick connector design for easier driver and SPD replacement
• High durability coating with multi-step painting process

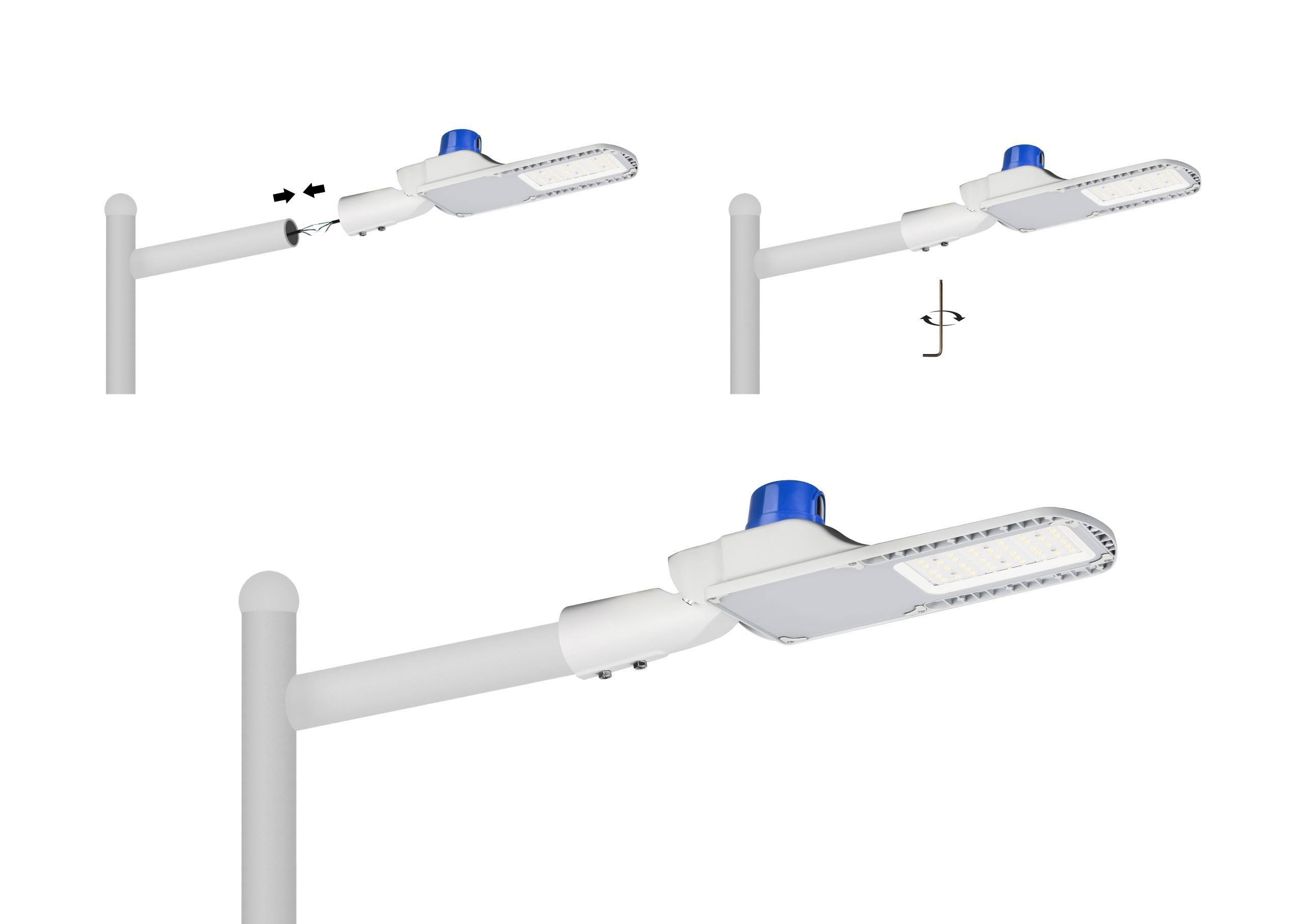

Installation should be carried out by a qualified electrician.

• Turn off power before installation
• Connect wiring correctly and ensure proper grounding
• Fasten the luminaire securely to the pole (tightening torque 6–8Nm)
• Check all connections before switching power on
