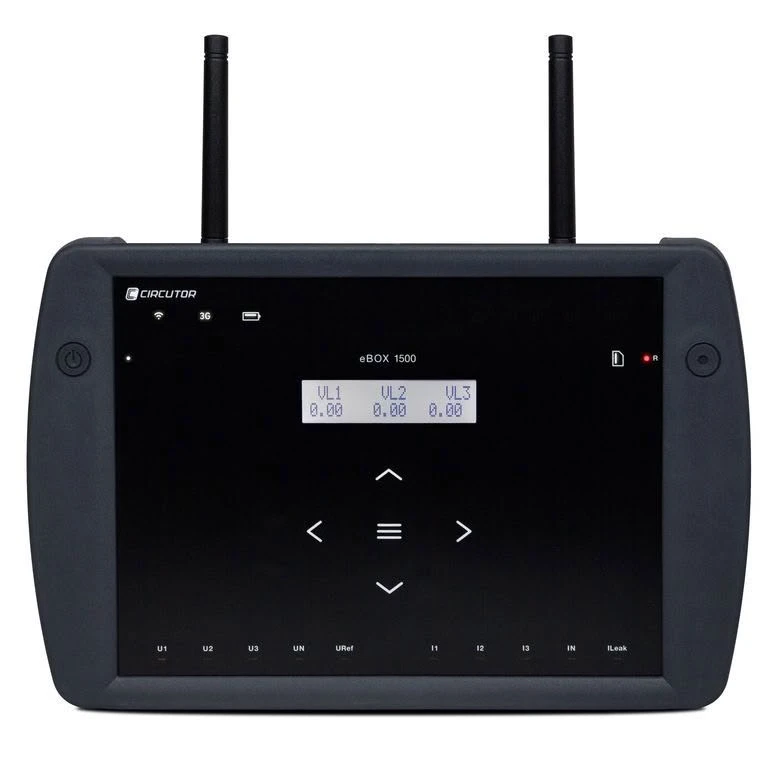

MYeBOX-1500
MYeBOX-1500, Portable power analyzer with recording of quality events and transients
- Communications: Wi-Fi | 4G
- Transistor output: 2
- Digital inputs: 2
- No. of voltage measurement inputs: 5
- Measuring current Channels: 5
- Class: Class A
POWER ANALYZER LOGINSEE MYEBOX INFO
MYeBOX® is a portable power analyser that measures and records electrical parameters, waveform transients, and network quality (EN 50160 compliant) in single-, two-, or three-phase systems. It can be configured and monitored in real time via an app or website, with data accessible remotely through the MYeBOX® Cloud. Users can start or stop recordings, view data graphically or in tables, and export it to PowerVision Plus for deeper analysis. Local configuration is also possible using its touch keypad and display.
MYeBOX® 150 and MYeBOX® 1500 have the following features and functions:
- 4 voltage measurement inputs (U1, U2, U3, Un)
- 4 current measurement inputs (I1, I2, I3, In)
- Measurement of the main electrical parameters
- Measurement of network quality parameters
- True RMS measurement (TRMS)
- Measurement of consumption and generation (4Q)
- Voltage quality event log, according to EN 61000-4-30
- Transients log
- Recording of the wave shape associated with the quality events and transients
- Measurement according to EN 61000-4-30
- Power supply is independent of the measurement
- Recording of the wave shape for each recording period
- LCD Screen
- Capacitive keypad
- Micro-USB port to download data
- Automatic detection of clamps
- Identification of phases with colours
- Compatible with clamps with EEPROM
- Recording of system events (EVA)
- NTP synchronisation
- Sending of alarms via e-mail
- Wi-Fi communications (access point/terminal)
The MYeBOX® 1500 model also has:
- 1 voltage measurement input Uref
- 1 leakage current measurement input
- 2 transistor inputs to centralise impulses / tariff / state
- 2 transistor outputs for alarms
- 4G communications
MYeBOX can be used to:
- Conduct comprehensive assessments of electrical installations.
- Evaluate energy consumption, load profiles, voltage disturbances, waveform displays, harmonics, and flicker levels, among other parameters.
- Carry out audits and analyses remotely for convenience and efficiency.
Specifications
AC power supply
- Nominal voltage: 100…240 V
- Frequency: 47…63 Hz
- Consumption: 22…28 VA
- Installation category: CAT II 300 V
Auxiliary battery power supply
- Battery type: Litio (3,7 Vc.c.)
- Capacity: 3700 mAh
- Load time: 6 h
- Load temperature: 0 … 40 °C
- Autonomy: 2 h (without 4G), 50 min (with 4G)
Power Supply
- Powered by: Charger / Adapter
- Output Voltage: 9 V DC
- Maximum Power: 20 W
Battery Specification
- Type: Lithium
- Voltage: 3 V DC
- Capacity: 220 mAh
- Performance Guarantee: 10 years
Memory
- Type: FAT 32
- Write Time: 1s, 1m, 5m, 15m, 1h, 1d
Voltage Measurement Circuit
- Measuring Range: 10 – 600 V~ (Ph-N)
- Frequency Range: 42.5 – 69 Hz
- Input Impedance: 2.4 MΩ
- Minimum Measurement Voltage (Vstart): 10 V AC
- Consumption: 0.15 VA
- Installation Category: CAT III 600 V
- Sampling Frequency: 45–65 Hz
Digital Inputs
- Quantity: 2
- Type: Potential-free contact
- Insulation: 2.7 kV
- Max Short-Circuit Current: 5 mA
- Open Circuit Voltage: 4–9 V DC
Wireless Communication
- Technology: Wi-Fi
- Band: 2.4 GHz
Radio Communication
- Technology: 4G
- Bands: UMTS/HSPA 850/900/1900/2100 MHz, GSM/GPRS/EDGE 850/900/1800/1900 MHz
Current Measurement Circuit
- Nominal Current (In): Depending on the clamp
- Phase Current Measurement: Transformers with output 0.250 A or 0.333 V
- Measuring Range: 1–200% In
- Maximum Pulse Current: 3 × In A
- Minimum Current Measurement: Depending on the clamp
- Maximum Input Consumption: 0.0004 VA
- Installation Category: CAT III 600 V
Measurement Accuracy
- Phase Voltage: Class 0.2 (10–600 V Ph-N ~) (IEC 61557-12)
- Phase Current: Class 0.2 (1–200% In) (IEC 61557-12)
- Frequency: Class A (42.5–69 Hz) (IEC 61000-4-30)
- Active Power (kW): Class 0.5 ± 1 digit (IEC 61557-12)
- Apparent Power (kVA): Class 0.5 ± 1 digit (IEC 61557-12)
- Reactive Power (kvar): Class 1 ± 1 digit (IEC 61557-12)
- Active Energy (kWh): Class 0.5S (IEC 62053-22)
- Reactive Energy (kvarh): Class 1 (IEC 62053-23)
- Power Factor: Class 0.5 (IEC 61557-12)
- Voltage THD: Class 0.5 (IEC 61557-12)
- Voltage Harmonics (up to 50th): Class 1 (IEC 61000-4-7)
- Current Harmonics (up to 50th): Class 1 (IEC 61000-4-7)
- Pinst Flicker: 3% (IEC 61000-4-15)
- Pst Flicker: 5% (0.2 – 10Pst) (IEC 61000-4-15)
- Voltage Unbalance (Kd): Class A (IEC 61000-4-30)
- Voltage Asymmetry (Ka): Class A (IEC 61000-4-30)
- Current Unbalance (Kd): Class A (IEC 61000-4-30)
- Current Asymmetry (Ka): Class A (IEC 61000-4-30)
Standards & Certifications
- Compliance: European Directive 2002/96/EC, EN 61326-1, IEC 61010-1 (3rd Edition)
- Certification: CE
- Max Operating Altitude: 2000 m
- Electrical Safety: Double insulation (Class II, IEC 61010-1)
Mechanical Characteristics
- Weight: 3.1 kg
Digital Transistor Outputs
- Quantity: 2
- Type: Opto MOSFET
- Maximum Voltage: 48 V DC
- Maximum Current: 90 mA
MYeBOX report management
MYeBOX® is an intuitive portable power analyzer that provides detailed information on all electrical parameters, on the network quality and transients of an electrical installation, providing full access to the information by connecting you directly to the unit via the app from mobile devices or by connecting you to the Cloud.
