Power Monitoring - Live Demo
Energy Management & Automation Systems
To create an effective energy optimization plan, you need reliable equipment that provides accurate insights into your consumption patterns. This helps you answer key questions like:
- How much energy are you using?
- When and where are you using it?
- How is it being consumed?
By understanding these factors, you can spot inefficiencies, track progress, and pinpoint areas for improvement.
In many commercial buildings and facilities, a large portion of energy use goes toward heating, cooling, and lighting systems. Integrating everything under a centralized control platform allows real-time monitoring and management of the entire facility—making it easier to identify performance issues and reduce unnecessary energy waste.
On-Premise Solution: PowerStudio SCADA
We live in an age driven by digital technology and energy efficiency, where access to information is key to understanding and optimizing how we use energy resources. PowerStudio software provides powerful tools for data analysis, custom SCADA screen creation, and tailored invoice reports or simulations, enabling you to take informed actions that fit your specific needs.
View Other Services:
View Other Services:
MYeBOX Power Analyzer
MYeBOX-1500
MYeBOX-1500, Portable power analyzer with recording of quality events and transients
- Communications: Wi-Fi | 4G
- Transistor output: 2
- Digital inputs: 2
- No. of voltage measurement inputs: 5
- Measuring current Channels: 5
- Class: Class A
MYeBOX® is a portable power analyser that measures and records electrical parameters, waveform transients, and network quality (EN 50160 compliant) in single-, two-, or three-phase systems. It can be configured and monitored in real time via an app or website, with data accessible remotely through the MYeBOX® Cloud. Users can start or stop recordings, view data graphically or in tables, and export it to PowerVision Plus for deeper analysis. Local configuration is also possible using its touch keypad and display.
MYeBOX® 150 and MYeBOX® 1500 have the following features and functions:
- 4 voltage measurement inputs (U1, U2, U3, Un)
- 4 current measurement inputs (I1, I2, I3, In)
- Measurement of the main electrical parameters
- Measurement of network quality parameters
- True RMS measurement (TRMS)
- Measurement of consumption and generation (4Q)
- Voltage quality event log, according to EN 61000-4-30
- Transients log
- Recording of the wave shape associated with the quality events and transients
- Measurement according to EN 61000-4-30
- Power supply is independent of the measurement
- Recording of the wave shape for each recording period
- LCD Screen
- Capacitive keypad
- Micro-USB port to download data
- Automatic detection of clamps
- Identification of phases with colours
- Compatible with clamps with EEPROM
- Recording of system events (EVA)
- NTP synchronisation
- Sending of alarms via e-mail
- Wi-Fi communications (access point/terminal)
The MYeBOX® 1500 model also has:
- 1 voltage measurement input Uref
- 1 leakage current measurement input
- 2 transistor inputs to centralise impulses / tariff / state
- 2 transistor outputs for alarms
- 4G communications
MYeBOX can be used to:
- Conduct comprehensive assessments of electrical installations.
- Evaluate energy consumption, load profiles, voltage disturbances, waveform displays, harmonics, and flicker levels, among other parameters.
- Carry out audits and analyses remotely for convenience and efficiency.
Specifications
AC power supply
- Nominal voltage: 100…240 V
- Frequency: 47…63 Hz
- Consumption: 22…28 VA
- Installation category: CAT II 300 V
Auxiliary battery power supply
- Battery type: Litio (3,7 Vc.c.)
- Capacity: 3700 mAh
- Load time: 6 h
- Load temperature: 0 … 40 °C
- Autonomy: 2 h (without 4G), 50 min (with 4G)
Power Supply
- Powered by: Charger / Adapter
- Output Voltage: 9 V DC
- Maximum Power: 20 W
Battery Specification
- Type: Lithium
- Voltage: 3 V DC
- Capacity: 220 mAh
- Performance Guarantee: 10 years
Memory
- Type: FAT 32
- Write Time: 1s, 1m, 5m, 15m, 1h, 1d
Voltage Measurement Circuit
- Measuring Range: 10 – 600 V~ (Ph-N)
- Frequency Range: 42.5 – 69 Hz
- Input Impedance: 2.4 MΩ
- Minimum Measurement Voltage (Vstart): 10 V AC
- Consumption: 0.15 VA
- Installation Category: CAT III 600 V
- Sampling Frequency: 45–65 Hz
Digital Inputs
- Quantity: 2
- Type: Potential-free contact
- Insulation: 2.7 kV
- Max Short-Circuit Current: 5 mA
- Open Circuit Voltage: 4–9 V DC
Wireless Communication
- Technology: Wi-Fi
- Band: 2.4 GHz
Radio Communication
- Technology: 4G
- Bands: UMTS/HSPA 850/900/1900/2100 MHz, GSM/GPRS/EDGE 850/900/1800/1900 MHz
Current Measurement Circuit
- Nominal Current (In): Depending on the clamp
- Phase Current Measurement: Transformers with output 0.250 A or 0.333 V
- Measuring Range: 1–200% In
- Maximum Pulse Current: 3 × In A
- Minimum Current Measurement: Depending on the clamp
- Maximum Input Consumption: 0.0004 VA
- Installation Category: CAT III 600 V
Measurement Accuracy
- Phase Voltage: Class 0.2 (10–600 V Ph-N ~) (IEC 61557-12)
- Phase Current: Class 0.2 (1–200% In) (IEC 61557-12)
- Frequency: Class A (42.5–69 Hz) (IEC 61000-4-30)
- Active Power (kW): Class 0.5 ± 1 digit (IEC 61557-12)
- Apparent Power (kVA): Class 0.5 ± 1 digit (IEC 61557-12)
- Reactive Power (kvar): Class 1 ± 1 digit (IEC 61557-12)
- Active Energy (kWh): Class 0.5S (IEC 62053-22)
- Reactive Energy (kvarh): Class 1 (IEC 62053-23)
- Power Factor: Class 0.5 (IEC 61557-12)
- Voltage THD: Class 0.5 (IEC 61557-12)
- Voltage Harmonics (up to 50th): Class 1 (IEC 61000-4-7)
- Current Harmonics (up to 50th): Class 1 (IEC 61000-4-7)
- Pinst Flicker: 3% (IEC 61000-4-15)
- Pst Flicker: 5% (0.2 – 10Pst) (IEC 61000-4-15)
- Voltage Unbalance (Kd): Class A (IEC 61000-4-30)
- Voltage Asymmetry (Ka): Class A (IEC 61000-4-30)
- Current Unbalance (Kd): Class A (IEC 61000-4-30)
- Current Asymmetry (Ka): Class A (IEC 61000-4-30)
Standards & Certifications
- Compliance: European Directive 2002/96/EC, EN 61326-1, IEC 61010-1 (3rd Edition)
- Certification: CE
- Max Operating Altitude: 2000 m
- Electrical Safety: Double insulation (Class II, IEC 61010-1)
Mechanical Characteristics
- Weight: 3.1 kg
Digital Transistor Outputs
- Quantity: 2
- Type: Opto MOSFET
- Maximum Voltage: 48 V DC
- Maximum Current: 90 mA
MYeBOX report management
MYeBOX® is an intuitive portable power analyzer that provides detailed information on all electrical parameters, on the network quality and transients of an electrical installation, providing full access to the information by connecting you directly to the unit via the app from mobile devices or by connecting you to the Cloud.
View Other Services:
View Other Services:
AHF Live Monitoring
Consumption and power quality
Maintaining good consumption and supply quality is crucial for ensuring electrical systems run smoothly, extending their lifespan, and preventing downtime or unnecessary operational costs.
The rise of advanced electronic systems in installations has greatly improved management and efficiency across different areas—like HVAC, lighting, elevators, escalators, EV chargers, and computer systems such as UPS and monitors. However, these modern technologies also generate harmonics, which can lead to various electrical issues.
Equally important is the management of power quality, as voltage disturbances can disrupt operations, impact customer service, and increase operating costs.
Explore our range of solutions designed to minimize harmonic problems and ensure optimal power quality in your installation.
View Other Services:
View Other Services:

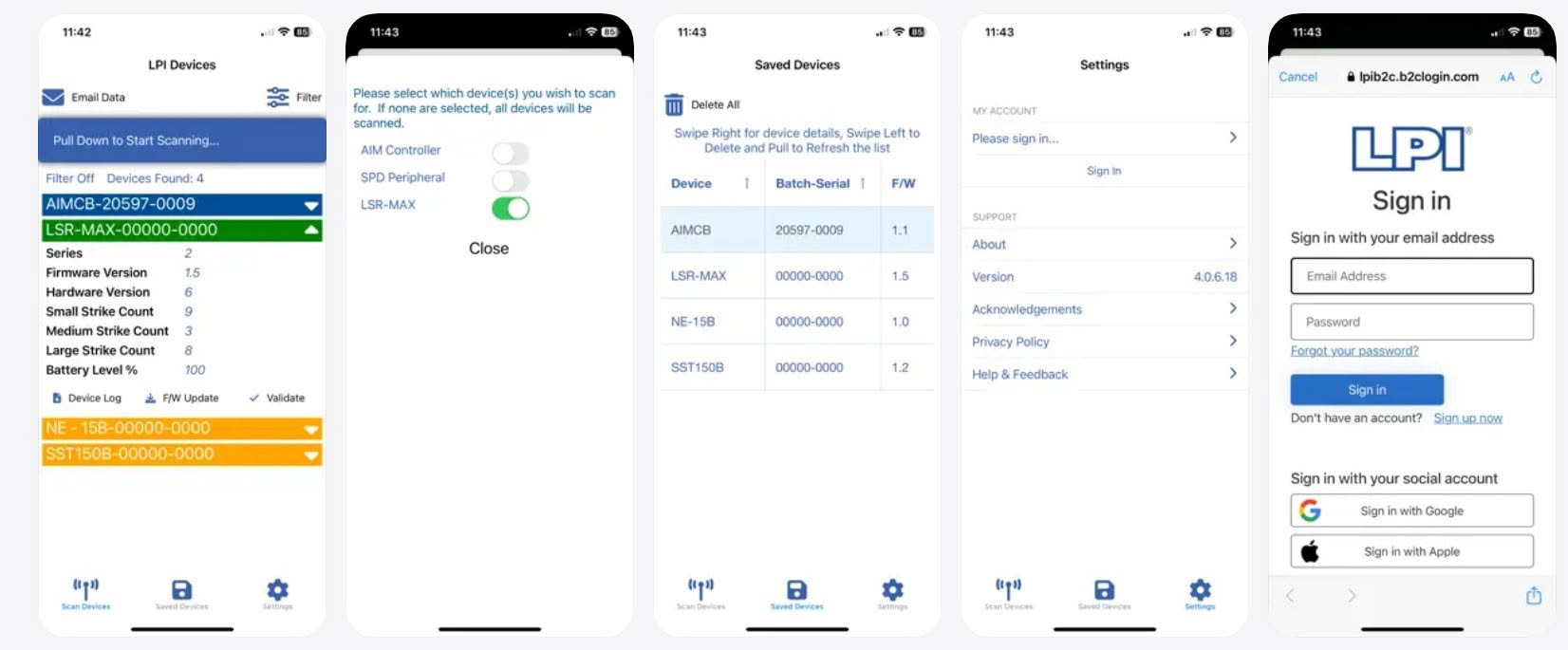

APP for LV Surge Protection
Key Benefits
- App-based operation removes the need for switchboards to be opened manually when undertaking maintenance checks for surge protection purposes
- The App-based operation allows for maintenance checks to be undertaken remotely by non-technical personnel
- Plug and base assembly for easy installation and maintenance
- Alarm Interface Modules (AIM) allow for standalone or integrated communication
- High performance surge protector for Class II applications
- Thermal and short-circuit disconnect
Key Features
- Bluetooth 4.1 communication provides feedback on critical operating elements
- Memory retention of the latest values stored in the SPD module
- Easy pairing and interrogation of SPD for quick and simple diagnostics
- Integrated surge counter in each module
- Individual device identifier tag
- Instant status indication for each module
View Other Services:
View Other Services:
Circutor-MyCatalogue-App
The new update of the free Circutor MyCatalog app is now available in the different stores, and is fully compatible with Android and iOS devices. Use it whenever you want to find the right product for your needs or anytime you need to view any documents related to our products, whether in the office or during start-up.
This version offers new features so you can get and share up-to-date information on all our solutions and continue improving the efficiency of your company. We make it easy for you, wherever you are, to check any technical document or video tutorial to help you put your device in service.
Every project just one click away
Create project lists with all the devices you have installed. You can create as many projects as you want, and save the devices installed in each. This way, with a single click you can see what devices and items you have installed, and access all the documents related to the products: technical sheet, manual, brochure, installation guide, size guides and video tutorials that will help you configure your equipment without needing a computer.
Easily share any file you need
Access any product to check the documentation you need at any time. Wherever you are, you will be able to not only view information on each product, such as the installation guide or manual, but you will also be able to download or share this information easily and quickly with anyone by email, WhatsApp and other means.
Stay informed at all times: Launches, promotions and seminars/webinars.
We’ll inform you personally whenever we launch a new product or solution on the market so you can stay up to date. Learn about our active promotions so you don’t miss out on any business opportunities, and get notifications on all our webinars and seminars to learn more about different topics of interest to your business.
Find exactly the product you need.
Use interactive filters to find the product that offers the features you really need. Use them to find the product you need, the reference code to process an order, together with all its documentation, diagrams and videos related to its configuration and start-up.
Available for both iOS and Android, we invite you to download the app and join us in our effort to reduce our carbon footprint by minimizing the use of paper.
View Other Services:
View Other Services:
LPINZ-Circutor Harmonic Filter Calculator
engineering tool
Reduce harmonic problems and improve your installation’s network quality
Active filters protect your electronic equipment.. Not only do they extend their useful life, but they also ensure continuity of supply, preventing service interruptions. Furthermore, coupled with adequate filtration systems, they improve the energy efficiency of your installation, which translates into significant savings. All of this contributes to reducing maintenance and operating costs, optimising both the performance and profitability of your equipment in the long term.
Calculate which active filter your installation needs
Discover our harmonic calculator, an online tool that allows you to easily size the most suitable active filter for your electrical installation.
Don’t have the measurements? No problem: You can model your installation based on the connected loads and obtain a theoretical calculation adjusted for your projects.
