Description
Description and Features
LPINZ modern conventional system allows ?non-roof-penetrating? (NRP) installation via specially-designed components and the application of a strong structural adhesive. The range includes air terminals, bases, conductors, connectors and fasteners in both copper and aluminium as well as adhesives and other accessories.
Request A Quote
Selectable variants
| Product Code | Description | Qty | Quote |
|---|---|---|---|

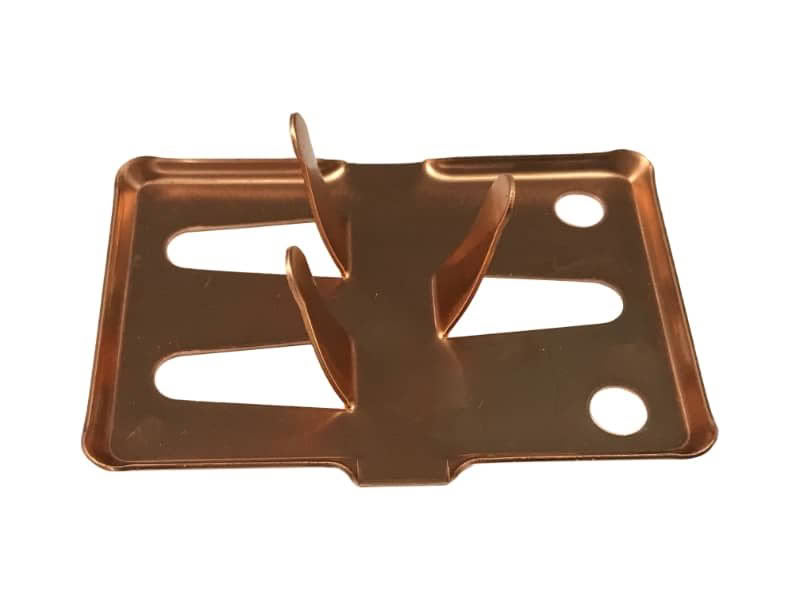

| LPINZ-FL6C | Layover adhesive stamped copper cable holder |
|
|
| LPINZ-FL6A | Layover adhesive stamped aluminium cable holder Aluminium 50 mm* smooth weave conductor |
|
|
| LPINZ-FL4C | Stamped adhesive crimp copper loop for use on built-up, single membrane or other flat surfaces where mechanical penetrations must be avoided |
|
|
| LPINZ-FL4A | Stamped adhesive crimp aluminium loop for use on built-up, single membrane or other flat surfaces where mechanical penetrations must be avoided |
|
|
| LPINZ-FL300C | Large Stamped copper loop, 1/4" hole, large stamped copper loop. |
|
|
| LPINZ-FL300A | Large Stamped aluminum loop, 1/4* hole, Aluminium 50 mm* smooth weave conductor large stamped aluminum loop. |
|
|
| LPINZ-FL5B | Standing seam bronze fastener with one 1/4" bolt to anchor to the standing seam and 1/4" hole on top. Supplied with 1 x FL3C loop and extra bolt for top mounting of loop |
|
|
| LPINZ-FL5A | Standing seam cast aluminium fastener with one Aluminium 50 mm' smooth weave conductor 1/4" bolt to anchor to the standing seam and 1/4" hole on top. Supplied with 1 x FL3C loop and extra bolt for top mounting of loop |
|
|
| LPINZ-PCZUB | Cast bronze U-bolt fits 5.1cm OD pipe, 2 way bolt pressure cable holder bronze |
|
|
| LPINZ-PCZUA | Cast aluminium u-bolt, fits 5.1cm OD pipe, 2 way bolt pressure cable holder aluminium |
|
