Description
Description and Features

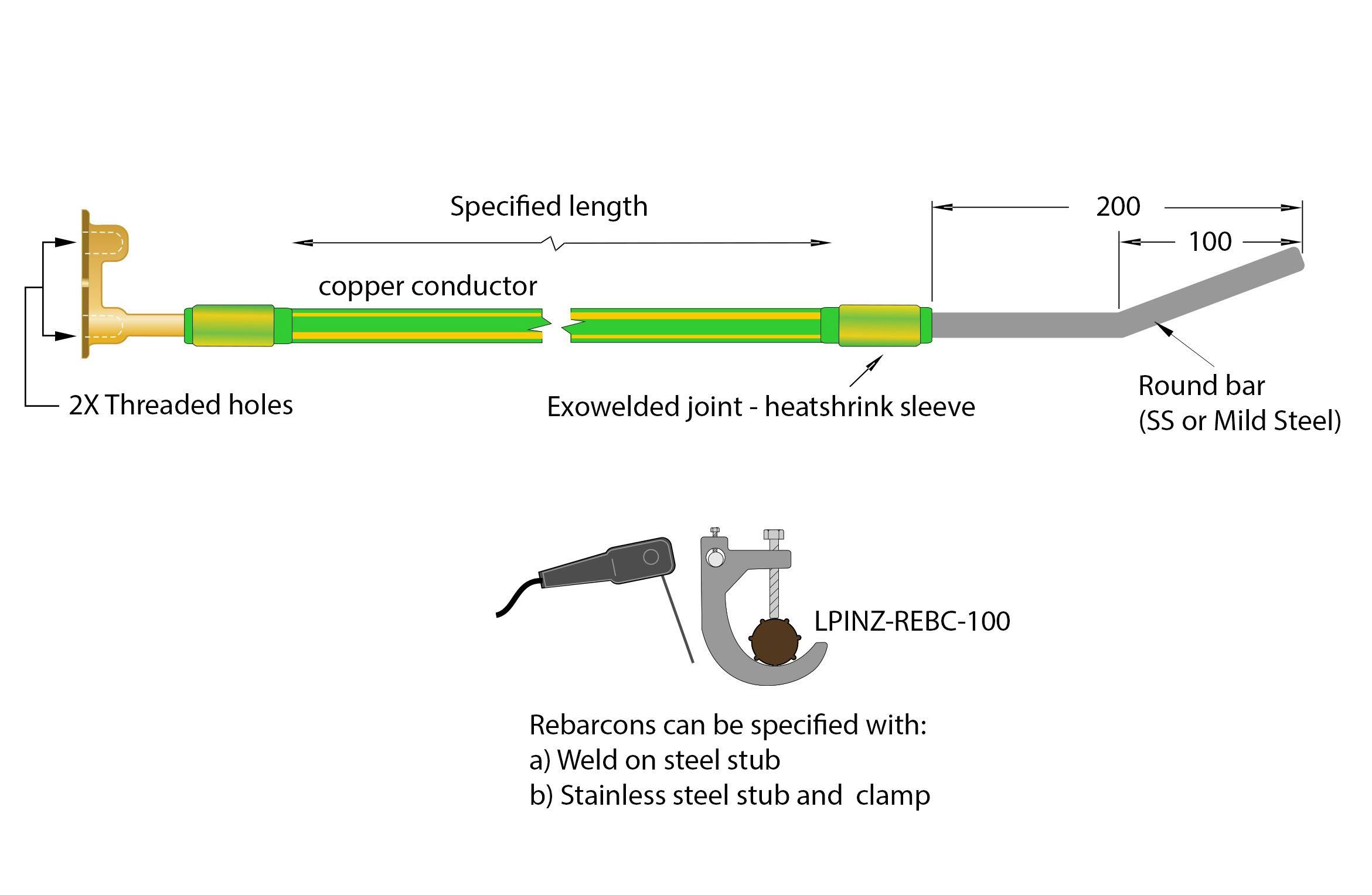

The Rebarcon (Wricon alternative) allows the entire earthing system to be positioned entirely within the structure, ensuring a secure location that minimizes the risk of accidental damage or unauthorized disconnection. This document and any dimensions act as a guideline only, for further information and detailed dimensions, or if an AutoCAD document is required, please contact us.
NOTE: For custom size Rebarcon (Wricon alternative), please contact us at our Auckland warehouse.
Request A Quote
Selectable variants
| Product Code | Description | Conductor Size (mm²) | Cable Length (m) | Bar Diameter | Qty | Quote |
|---|---|---|---|---|---|---|
| LPINZ-BT0610M | Domestic Rebarcon (Wricon Equivalent) cable with bare tail | 6mm | 10m | 6mm |
|
|
| LPINZ-BT1010M | Domestic Rebarcon (Wricon Equivalent) cable with bare tail | 10mm | 10m | 6mm |
|
|
| LPINZ-PL951M | Domestic Rebarcon (Wricon Equivalent) cable with bare tail | 16mm | 10m | 16mm |
|
|
| LPINZ-PL355M | Rebarcon (Wricon Equivalent) cable with plate | 35mm | 5m | 12mm |
|
|
| LPINZ-PL353M | Rebarcon (Wricon Equivalent) cable with plate | 35mm | 3m | 12mm |
|
|
| LPINZ-PL1853M | Rebarcon (Wricon Equivalent) cable with plate | 35mm | 3m | 20mm |
|
|
| LPINZ-PL505M | Rebarcon (Wricon Equivalent) cable with plate | 50mm | 5m | 12mm |
|
|
| LPINZ-PL503M | Rebarcon (Wricon Equivalent) cable with plate | 50mm | 3m | 12mm |
|
|
| LPINZ-PL705M | Rebarcon (Wricon Equivalent) cable with plate | 70mm | 5m | 16mm |
|
|
| LPINZ-PL703M | Rebarcon (Wricon Equivalent) cable with plate | 70mm | 3m | 16mm |
|
|
| LPINZ-PL702M | Rebarcon (Wricon Equivalent) cable with plate | 70mm | 2m | 16mm |
|
|
| LPINZ-PL701M-SS | Rebarcon (Wricon Equivalent) cable with plate | 70mm | 1m | 16mm |
|
|
| LPINZ-PL701M | Rebarcon (Wricon Equivalent) cable with plate | 70mm | 1m | 16mm |
|
|
| LPINZ-PL701.5M | Rebarcon (Wricon Equivalent) cable with plate | 70mm | 1.5m | 16mm |
|
|
| LPINZ-PL700.5M | Rebarcon (Wricon Equivalent) cable with plate | 70mm | 0.5m | 16mm |
|
|
| LPINZ-PL955M | Rebarcon (Wricon Equivalent) cable with plate | 95mm | 5m | 16mm |
|
|
| LPINZ-PL953M | Rebarcon (Wricon Equivalent) cable with plate | 95mm | 3m | 16mm |
|
|
| LPINZ-PL951M | Rebarcon (Wricon Equivalent) cable with plate | 95mm | 1m | 16mm |
|
|
| LPINZ-PL950.5M | Rebarcon (Wricon Equivalent) cable with plate | 95mm | 0.5m | 16mm |
|
|
| LPINZ-PL1205M-SS | Rebarcon (Wricon Equivalent) cable with plate | 120mm | 5m | 16mm |
|
|
| LPINZ-PL1205M | Rebarcon (Wricon Equivalent) cable with plate | 120mm | 5m | 16mm |
|
|
| LPINZ-PL1203M | Rebarcon (Wricon Equivalent) cable with plate | 120mm | 3m | 16mm |
|
|
| LPINZ-PL1201M | Rebarcon (Wricon Equivalent) cable with plate | 120mm | 1m | 16mm |
|
|
| LPINZ-PL1200.5M | Rebarcon (Wricon Equivalent) cable with plate | 120mm | 0.5m | 16mm |
|
